Vertical High Pressure Steam Sterilizer (Double Jacketed Model)
Specifications:
Vertical High Pressure Steam Sterilizers with outer cover, jacket, inner chamber and lid made of Stainless Steel to accommodate two dressing drums. Fitted with double safety valves. Electrically operated or on gas/kerosene size 16 x 24.
This sterilizer is a most versatile and very popular model specially designed and ideally suitable for use in medium size general hospitals, surgical clinics and maternity homes.
It has double chamber with outer jacket made of stainless steel and inner chamber made of 316 stainless steel sheets.
The body is well insulated and covered with stainless steel sheet. All joints are welded and hydraulically tested to withstand twice working pressure. The working pressure is 22 lbs P.S.I.
The lid is dome shaped and is made of heavy gauge stainless steel sheet. Strong wing nuts are provided to tighten the lid.
The Sterilizer is fitted with pressure gauge, two safety valves: 1) Spring loaded 2) Dead weight (gravity operated). These valves are so adjusted and arranged that in case the former fails, the latter will function.The spring-loaded safety valve adjusted to 22 lbs. P.S.I.
The Sterilizer is also fitted with water inlet valve, (funnel); steam exhaust valve and water level gauge glass and stem coke.
All fittings other than made of stainless steel are heavily chrome plated. The legs are made of best quality casting and elegantly painted.

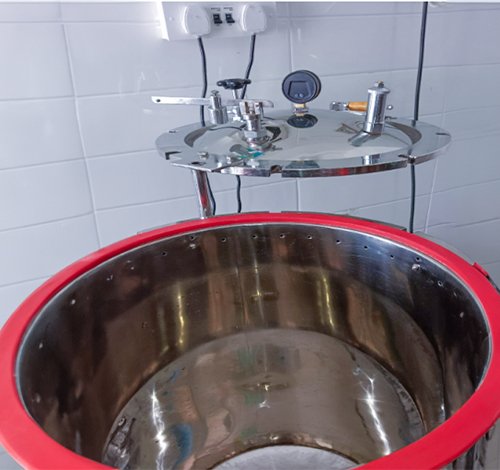

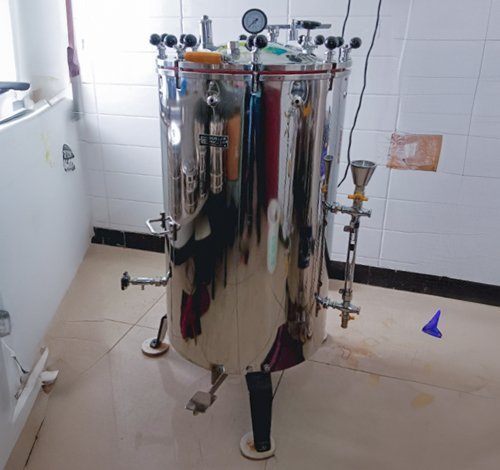

Installation Showcase
