Horizontal Cylindrical High Pressure Steam Sterilizer
Specifications:
The chamber and jacket of this Sterilizer are made of 316 quality stainless steel sheet, duly argon welded having stainless steel door. The outer cover, shooting rods, end ring, radial arms, steam generator (boiler) and its door are also made of stainless steel. The unit will be mounted on epoxy powder coated mild steel tubular stand with stainless steel ground levelling flanges.
The equipment will be complete with standard fittings like Multiport Valve, Safety Valve, Pressure Switch, Low water cut-Off (Magnetic Level Switch), Compound Gauge, Pressure Gauge, Dial Thermometer, Vacuum dryer systems etc.
The Sterilizer will be suitable for electrical operation on 400/440 Volts, 50 Cycles, AC supply with neutral.
Sizes Available
|
Model |
Descriptions |
Chamber Size (mm) |
Chamber volume |
Standard Load |
High Speed Load |
|---|---|---|---|---|---|
|
HE 16 X 24 |
Horizontal Cylindrical |
400 Dia X 600 L |
75 Ltr |
9 k.w. |
18 k.w. |
|
HE 16 X 36 |
Horizontal Cylindrical |
400 Dia X 900 L |
115 Ltr |
9 k.w. |
18 k.w. |
|
HE 16 X 48 |
Horizontal Cylindrical |
400 Dia X 1200 L |
150 Ltr |
9 k.w. |
18 k.w. |
|
HE 20 X 36 |
Horizontal Cylindrical |
500 Dia X 900 L |
175 Ltr |
9 k.w. |
18 k.w. |
|
HE 20 X 48 |
Horizontal Cylindrical |
500 Dia X 1200 L |
235 Ltr |
9 k.w. |
18 k.w. |
|
HE 24 X 48 |
Horizontal Cylindrical |
600 Dia X 1200 L |
340 Ltr |
9 k.w. |
18 k.w. |
Note: Optional Accessory : Vacuum Pump with Motor
Installation Showcase
Unsterile Area

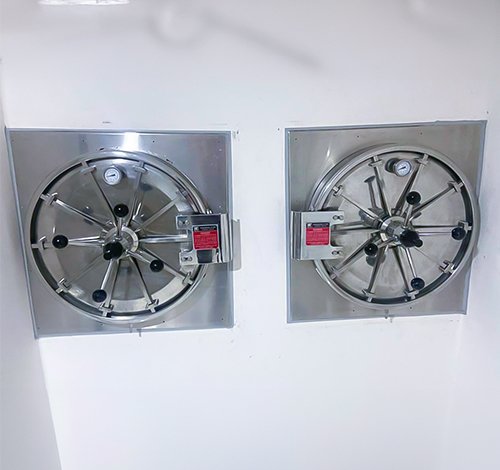

Sterile Area
